Brand: 8TEN

Color: Gray

Features:

• Replaces OEM Part Numbers: Compatible with John Deere AM116654, AM125082, AM126710, Warner 5215-117, Xtreme X0454
• Compatible with John Deere F510, F525
• High-Performance Gen 3 8TEN PTO Clutch; 370 Degrees Auto Thermal Cutoff Preventing Clutch Damage
• Enhanced Stopping Time with Superior Brake System
• Anti High & Low Temperature bearing and encapsulated coils (-40 Degrees F to 370 Degrees F) for Consistent Performance

Publisher: Mishon Corporation

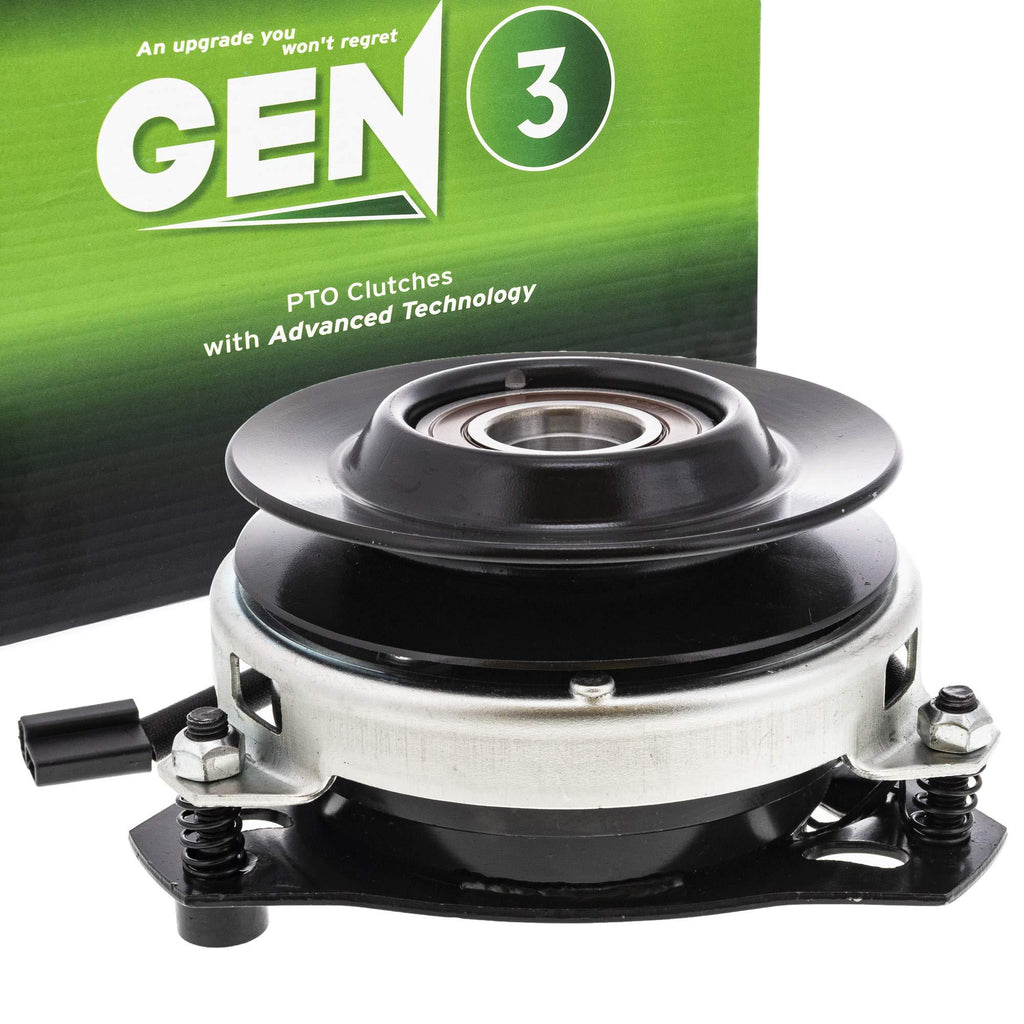

Details: A brand new 8TEN GEN 3 PTO Clutch. The Power Take Off Clutch is a vital part of your machines performance and engages/disengages your mower deck blades. By purchasing a PTO clutch, you can keep your equipment running smoothly and the blades rotating without any major machine repairs. Quality and performance guaranteed!

PTO Specifications

Life: B10 life of 25,000 cycles at 2000 hours
Environment: Ambient -40F to +200F
Bearing Operating Temperatures: -40F to +350F
Coil Operating temperatures: -40F to +350F
Operating Speed: Input speeds up to 3600 rpm
Stop Time: 4 seconds
Working Noise: Low
Voltage Insulation: 1000V
Performance Enhancement: Friction Ring
Temperature Fuse Melting Point of Coil: 365F

Unique Specs:

Torque: 150Nm (110ft-lb)
Resistance at 70F: 2.52+-0.1 (Ohms)
Current: 4.76 (Amps)
Available Bores: 1",1-1/8"
Clutch Rotation: CW,CCW
Connection: Lead Wire

Package Dimensions: 12.0 x 12.0 x 12.0 inches
